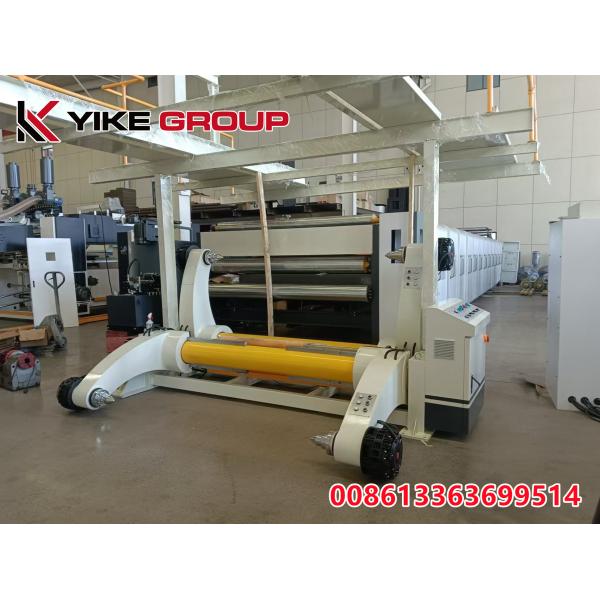

Hydraulic Shaftless Mill Roll Stand / Corrugated Carton Box Machine CE Approved

Brand Name : YIKE GROUP

Model Number : YK-1800

Certification : ISO,CE

Place of Origin : China

MOQ : 1 Set for Carton Line

Payment Terms : L/C, T/T, Western Union

Supply Ability : Hydraulic Shaftless Mill Roll Stand 50 Sets Per Month

Delivery Time : 3 Months For Hydraulic Shaftless Mill Roll Stand

Packaging Details : Reel Stand Packages by Plastic Film

Price : Negotiation

Item : Corrugated Carton Box Machine

Max Weight : V5B 2.5T, V6B 3.5T

Size Available : 1400-2800mm

Brake : Pneumatic Brake

Usage : Kraft Paper Stand

Application : Corrugated Carton Line

Spindle : 242mm

Warranty : One year

Contact Now

Hydraulic Shaftless Mill Roll Stand For Corrugated Carton Box Machine

I Structural Feature:

  • Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
  • Brake adjustable adopts multipoint braking system.
  • Every stand matched two sets paper car , and they can paper on the both sides at the same time.

Hydraulic Shaftless Mill Roll Stand / Corrugated Carton Box Machine CE Approved

II Technical Parameters:

  • The range of clamping paper:MAX1800mm MIN1000mm
  • Clamping diameters:MAX￠1500mm MIN￠350mm
  • Main shaft diameter of paper holder:￠240mm
  • Gas source work pressure(Mpa):0.4---0.8Mpa
  • Equipment size:Lmx4.3*Wmx1.8*Hmx1.6
  • Single weight:MAX4000Kg

Hydraulic Shaftless Mill Roll Stand / Corrugated Carton Box Machine CE Approved

III ​Hydraulic System Parameters:

  • Work pressure(Mpa):16---18Mpa
  • Lifting hydraulic cylinder:￠100×440mm
  • Clamping hydraulic cylinder:￠63×1300m
  • Hydraulic station motor power:3KW --380V -- 50Hz
  • Solenoid valve voltage:220V 50 Hz

Hydraulic Shaftless Mill Roll Stand / Corrugated Carton Box Machine CE Approved

I​V ​Mainly Purchased Parts, Raw Materials and Origin:

Name of Main Parts Brands or Place of Origin Material
Main Shaft Day steel production Diameter 242mm
Swing Arm Production by own Resin sand gray iron HT200
Wallboard Jigang prduction Q235A Welding parts
Bearing HRB,ZWZ,LYC
Expand Chuck Zhejiang xusheng 3,4 inch shared
Main Electrical Appliance France Schneider
Button CHINT NP2series
Air Switch French Schneider
Pneumatic Components Zhejiang Sonor CSM
Hydraulic Station Shandong Zaozhuang
Brake Pump Zhejiang
